Wi-Fi I/O Modules
WF-2000 和 tWF 系列是 Wi-Fi I/O 模块，符合 IEEE 802.11 b/g 标准。
WF-2000 和 tWF 系列支持 Modbus/TCP 和 UDP 协议和网络加密配置，与 SCADA 软件完美结合，让用户随时随地轻松安全地存取。
| Wi-Fi I/O | WF Series (WF-2000) | tWF Series | WF IO Series |
|---|---|---|---|

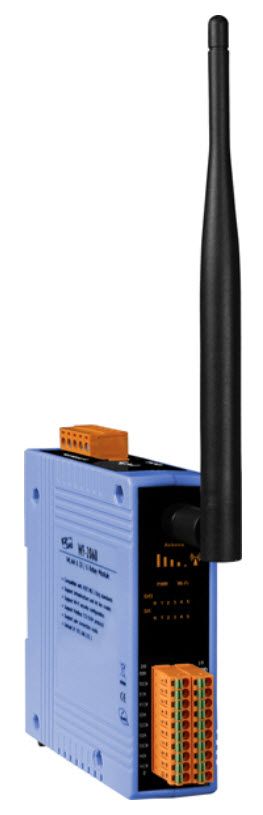

| 图片 |  |
 |
 |
| 尺寸 (W x L x H, Units: mm) | 33 x 106 x 120 | 52 x 97 x 27 | 150 x 38 x 97 |
| 天线 | Yes | No | Yes |

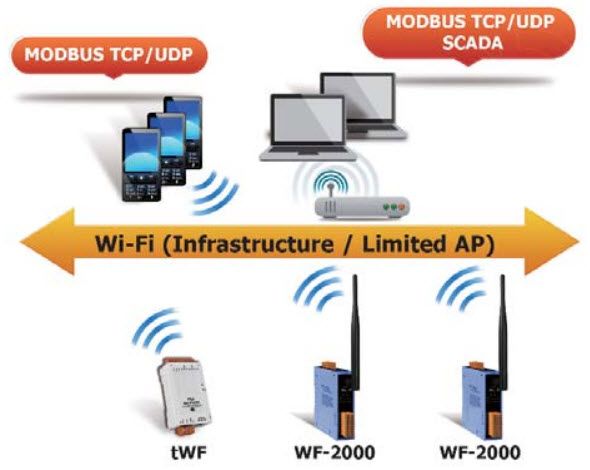

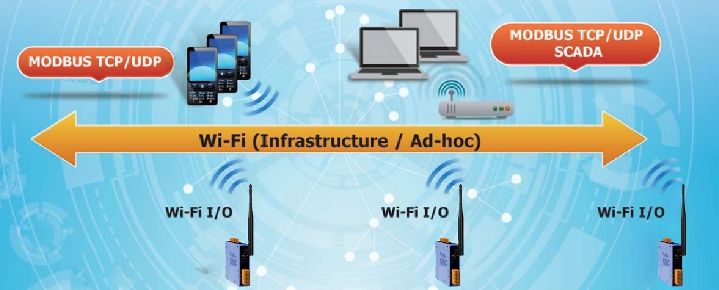

应用
|
|
||||
|
模拟量输入
|
||||
| 型号 | Wi-Fi | 模拟量输入 | ||
|---|---|---|---|---|
| 频率 | 通道数 | 电压和电流输入 | 传感器 | |
| WF-2015
|
2.4 GHz | 6 | - | RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| WF-2017
|
2.4 GHz | 8/16 (DIFF/SE) | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA |
- |
| WF-2019/S
|
2.4 GHz | 10 | ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA |
Thermocouple: J, K, T, E, R, S, B, N, C |
| WF-2215
|
2.4/ 5 GHz | 6 | - | RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
|
|
|||||||||
|
多功能 I/O (Asia Only)
|
|||||||||
| 型号 | Wi-Fi | AI | AO | DI | DO | ||||
|---|---|---|---|---|---|---|---|---|---|
| 频率 | 通道数 | 电压和电流输入 | 通道数 | 电压和电流输入 | 通道数 | 类型 | 通道数 | 类型 | |
| WF-2026
|
2.4 GHz | 5 | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA |
2 | +0 ~ +5 V, +0 ~ +10 V, ±5 V, ±10 V +0 ~ +20 mA, +4 ~ +20 mA |
2 | Dry (Source) | 3 | Open Collector (Sink) |
| WF-2226
|
2.4/ 5 GHz | 5 | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA |
2 | +0 ~ +5 V, +0 ~ +10 V, ±5 V, ±10 V +0 ~ +20 mA, +4 ~ +20 mA |
2 | Dry (Source) | 3 | Open Collector (Sink) |
|
|
|||||||
|
数字量输入/输出 (Asia Only)
|
|||||||
| 型号 | Wi-Fi | 数字量输入/计数器 | 数字量输出 | ||||
|---|---|---|---|---|---|---|---|
| 频率 | 通道数 | 类型 | Sink/Source | 通道数 | 类型 | 最大负载电流 @ 25°C | |
| WF-2042
|
2.4 GHz | - | - | - | 16 | Open Collector (Sink) | 700 mA |
| WF-2051
|
2.4 GHz | 16 | Dry, Wet | Dry: Source Wet: Sink/Source |
- | - | - |
| WF-2055
|
2.4 GHz | 8 | 8 | Open Collector (Sink) | 700 mA | ||
| WF-2251
|
2.4/ 5 GHz | 16 | Dry, Wet | Dry: Source Wet: Sink/Source |
- | - | - |
| WF-2255
|
2.4/ 5 GHz | 8 | 8 | Open Collector (Sink) | 700 mA | ||
|
|
|||||||||||
|
继电器输出 & 数字量输入
|
|||||||||||
| 型号 | Wi-Fi | 数字量输入 | 继电器输出 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 频率 | 通道数 | 类型 | Sink/Source | 通道数 | 类型 | 最大负载电流 @ 25°C | |||||
| WF-2060
|
2.4 GHz | 6 | Dry, Wet | Dry: Source Wet: Sink/Source |
6 | Power Relay (Form A) | 5 A/channel | ||||
| WFM-R14
|
2.4 GHz | - | - | - | 14 | 2 Power Relays (Form A) 12 Power Relays (Form C) |
5 A/channel (Form A) 6 A/channel (Form C) |
||||
| WF-2260
|
2.4/ 5 GHz | 6 | Dry, Wet | Dry: Source Wet: Sink/Source |
6 | Power Relay (Form A) | 5 A/channel | ||||
|
|||
|
模拟量输入
|
|||
| 型号 | 模拟量输入 | ||
|---|---|---|---|
| 通道数 | 电压和电流输入 | 传感器 | |
| tWF-AD5
|
5 | ±1.25 V, ±2.5 V, ±5 V, ±10 V | - |
| tWF-TH8
|
8 | - | Thermistor |
|
||||||||||
|
多功能 I/O (仅限亚洲)
|
||||||||||
| 型号 | AI | AO | DI | DO | 继电器输出 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 通道数 | 电压和电流输入 | 通道数 | 电压和电流输入 | 通道数 | 类型 | 通道数 | 类型 | 通道 | 类型 | |
| tWF-DA1PD2R1
|
- | - | 1 | 0 ~ 10 V, 0 ~ 20 mA | 2 | Dry Contact | - | - | 1 | Power Relay |
|
||||||
|
继电器输出 & 数字量输入 (仅限亚洲)
|
||||||
| 型号 | 数字量输入 | 继电器输出 | ||||
|---|---|---|---|---|---|---|
| 通道数 | 类型 | Sink/Source | 通道数 | 类型 | 最大负载电流 @ 25°C | |
| tWF-PD4R3
|
4 | Dry | Sink | 3 | Power Relay | Relay DC 30 V/5 A, AC 250 V/5 A |
| tWF-PD4SR2A
|
2 | AC SSR | AC SSR AC 240 V/1.5 A | |||
| tWF-PD4SR2D
|
DC SSR | DC SSR DC 3 ~ 30 V/1 A | ||||

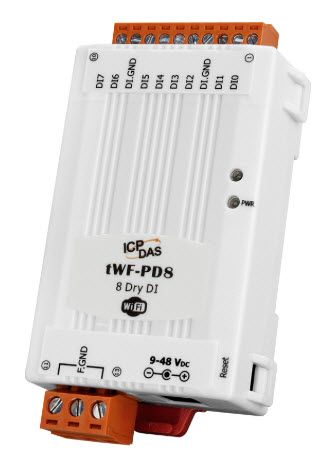

| tWF-PD8
|
8 | - | - | - | ||
| tWF-R6
|
- | - | - | 6 | Power Relay | Relay DC 30 V/5 A, AC 250 V/5 A |
WF-IO-4N是一款采用Modbus通讯协议的Wi-Fi I/O，它上面可以配备一片ICPDAS的XV I/O子板。WF-IO支持Wi-Fi 5G频段，并符合 IEEE 802.11 a/b/g/n 标准。在I/O子板部分，WF-IO支持ICPDAS的XV I/O板，包含模拟电流与电压输入/输出、数字讯号输入/输出、TC/RTD 温度测量、脉波计数等，多种 I/O 讯号类型可因应不同的案场应用需求。
|
|
|||||
|
WF-IO
|
|||||
| 型号 | 频率 | Wi-Fi协定 | 支持模式 | 通讯协议 | 传输距离(LoS) |
|---|---|---|---|---|---|
| WF-IO-4N | 2.4/5 GHz | IEEE 802.11 a/b/g/n | AP / Station | Modbus / TCP &UDP | 50m |
|
|
|||||||
|
XV Board
|
|||||||
| 型号 | 规格 | 一般模式 | 成对模式 | ||||
|---|---|---|---|---|---|---|---|
| DIO扩充板 | |||||||
| XV107 | 8x DI (Wet), 8x DO (NPN) | O | O | ||||
| XV107A | 8x DI (Wet), 8x DO (PNP) | O | O | ||||
| XV110 | 16x DI (Dry/Wet) | O | O | ||||
| XV111 | 16x DO (NPN) | O | O | ||||
| XV111A | 16x DO (PNP) | O | O | ||||
| XV161-SL | O | O | |||||
| 继电器输出扩充板 | |||||||
| XV116 | 5x DI (Wet), 6x Relay | O | O | ||||
| XV119 | 9x Relay | O | O | ||||
| 多功能扩充板 | |||||||
| XV303 | 4x AO (V, mA), 4x DI (Wet), 4x Relay | O | O | ||||
| XV305 | 4x AI (V, mA, Thermocouple), 4x DI (Wet), 4x Relay | O | O | ||||
| XV306 | 4x AI (V, mA), 4x DI (Wet), 4x Relay | O | O | ||||
| XV307 | 2x AO (V, mA), 4x DI (Wet), 4x Relay | O | O | ||||
| XV308 | 8x AI (V, mA), 8x [DI (Dry/Wet)+DO (NPN)] (Universal DIO) | O | - | ||||
| XV310 | 4x AI (V, mA), 2x AO (V, mA), 4x DI (Dry), 4x DO (PNP) | O | O | ||||
| XV315 | 3x AI (RTD), 3x AO (V, mA), 4x DI/Counter (Wet) | O | - | ||||
Please refer to the link below for details: https://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wlan_products/external_antenna.html
