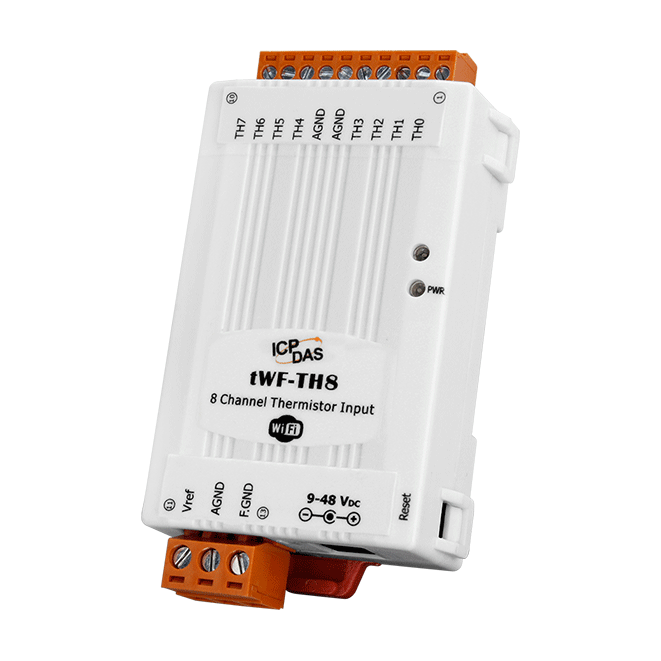

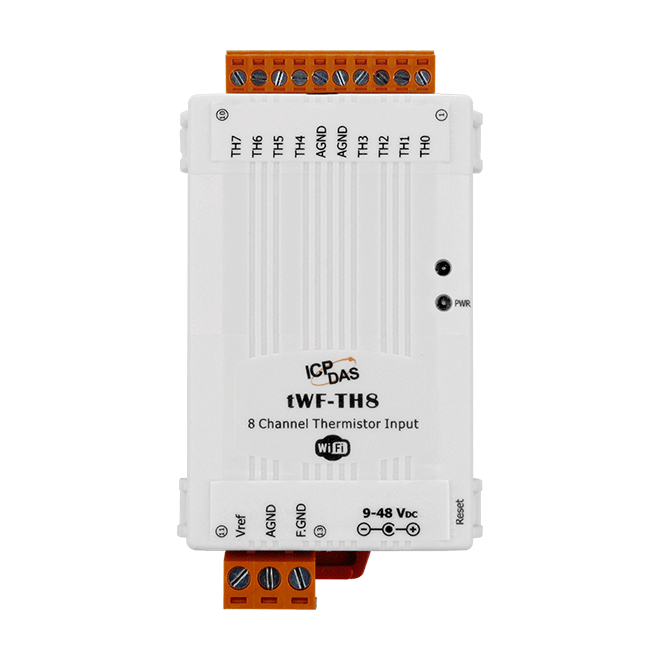

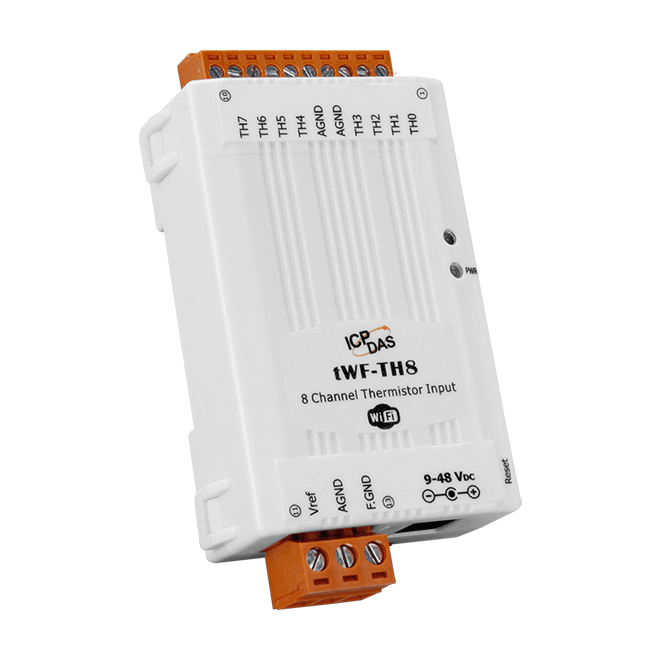

tWF-TH8
微型 Wi-Fi I/O 模块, 8-ch 热敏电阻输入 (仅限亚洲)
特色
• Wi-Fi communication remote I/O controller.
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Default 13 NTC Thermistor Types
• 8 User-defined NTC Thermistor Types
• 16 bit resolution
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Default 13 NTC Thermistor Types
• 8 User-defined NTC Thermistor Types
• 16 bit resolution
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective
介绍
The tWF-TH8 module have 8 channels Thermistor input as WLAN connection complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the tWF-TH8 make an easy way to incorporate wireless connectivity into monitoring and control systems. They also support Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software or HMI Modbus APP and offer easy and safe access for users from anytime and anywhere.
应用
• Building Automation
• Security Automation
• Machine Automation
• Factory Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Testing Equipment
相似产品
| 隔离 | |
|---|---|
| 內部隔离 | 3000 VDC |
| EMS 防护 | |
|---|---|
| EFT (IEC 61000-4-4) | Yes ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED 灯 | |
|---|---|
| 状态 | 1 x Power 1 x Status |
| Wi-Fi | |
|---|---|
| 标准 | IEEE 802.11 b/g/n |
| 模式 | Access Point (Limited AP) & Station (STA) |
| 加密 | Open,WEP, WPA2 |
| 数据传输率 | Data Rate, 2.4 GHz |
| 模拟量输入 | |
|---|---|
| 通道数 | 8 |
| 类型 | NTC Thermistor |
| 分辨率 | 16-bit |
| 精度 | +/-1% |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +9 VDC ~ +48 VDC |
| 功耗 | 0.84W Max. |
| 机构 | |
|---|---|
| 尺寸 (mm) | 52 x 97 x 27 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -30 ~ +75 °C |
| 湿度 | 10 ~ 95% RH, Non-condensing |
