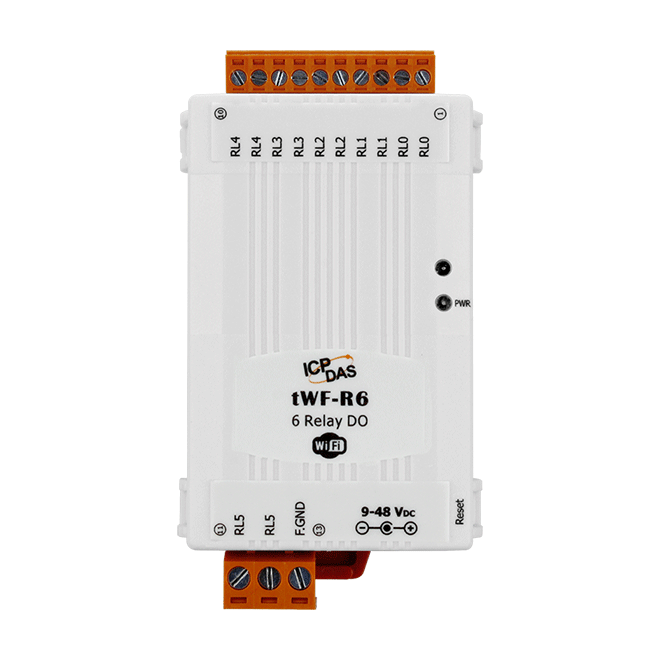

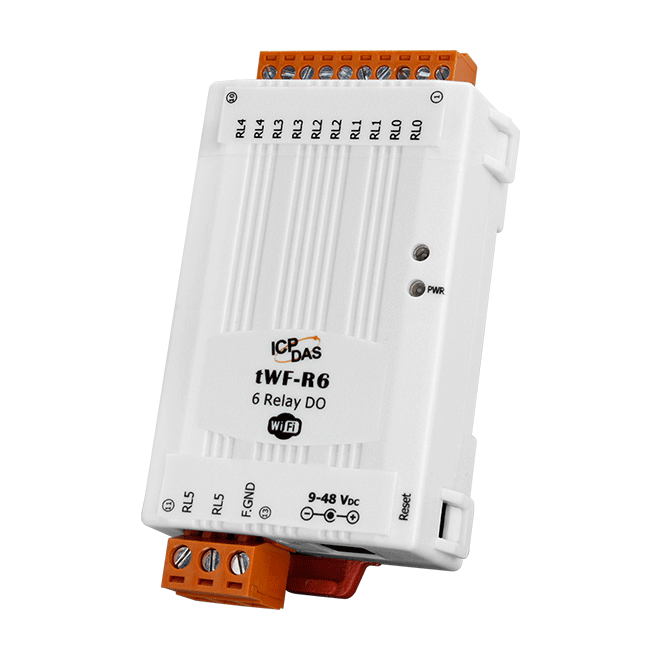

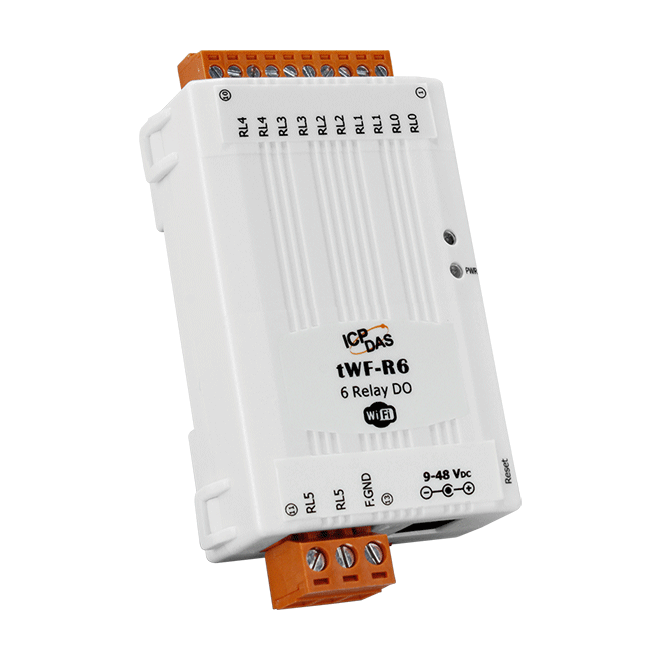

tWF-R6
微型 Wi-Fi I/O 模块, 6-ch 电力继电器 (仅限亚洲)
特色
• Wi-Fi communication remote I/O module
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Power Relay outputs
• Wide power supply range: 9 ~ 48 VDC
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Power Relay outputs
• Wide power supply range: 9 ~ 48 VDC
介绍
The tWF-R6 have WLAN connection complies with the IEEE802.11b/g/n standards, With the popularity of 802.11 network infrastructure, incorporate wireless connectivity into monitoring and control systems. They also support Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software, HMI Modbus APP and offer easy and safe access for users. The tWF-R6 provides 6 Power Relay output channels, 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
应用
• All Types of On/Off Control
• Building Automation
• Security Automation
• Machine Automation
• Factory Automation
• Remote Diagnosis
• Remote Maintenance
• Testing Equipment
相似产品
| 隔离 | |
|---|---|
| 內部隔离 | 3000 VDC |
| EMS 防护 | |
|---|---|
| EFT (IEC 61000-4-4) | Yes ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED 灯 | |
|---|---|
| 状态 | 1 x Power 1 x Status |
| Wi-Fi | |
|---|---|
| 标准 | IEEE 802.11 b/g/n |
| 模式 | Access Point (Limited AP) & Station (STA) |
| 加密 | Open,WEP, WPA2 |
| 数据传输率 | Data Rate, 2.4 GHz |
| 继电器输出 | |
|---|---|
| 通道数 | 6 x Form A |
| 类型 | Form A: Power Relay |
| 触点规格 | Form A: DC 30V/5A AC 250V/5A |
| 作动时间 | 5 ms |
| 釋放时间 | 5 ms |
| 上电值 | Yes(OFF) |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +9 VDC ~ +48 VDC |
| 功耗 | 0.7W Max. |
| 机构 | |
|---|---|
| 尺寸 (mm) | 52 x 97 x 27 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -30 ~ +75 °C |
| 湿度 | 10 ~ 95% RH, Non-condensing |
