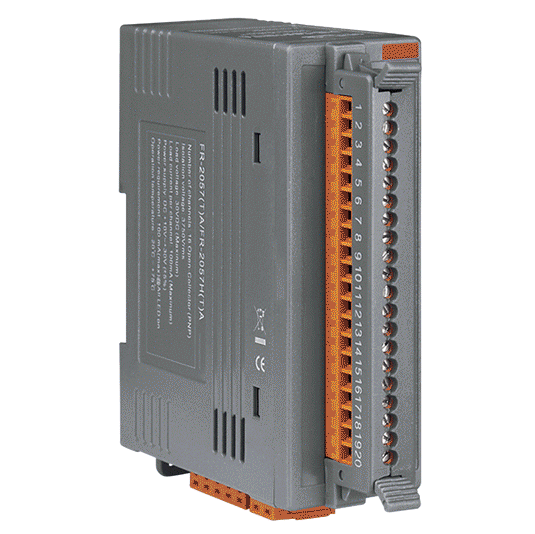

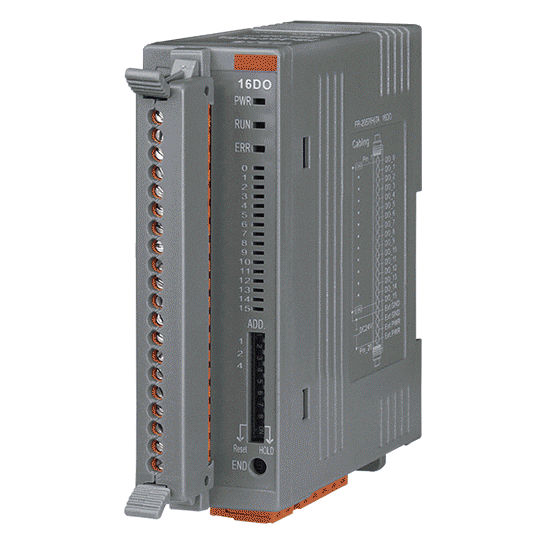

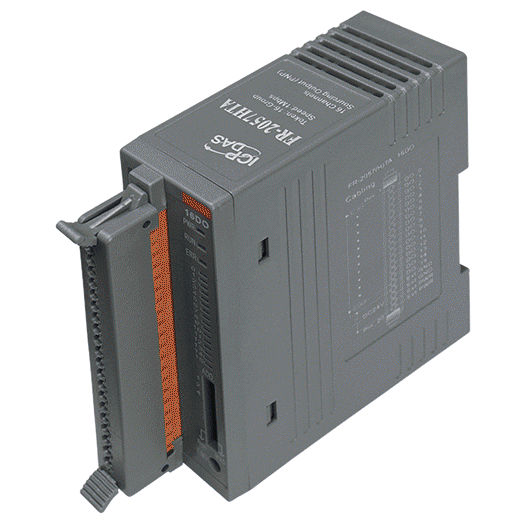

High-speed FRnet I/O Module with 16-channel Isolated DO (Source, PNP, 30VDC)
特色
• Built-in Wire-saving FRnet DI/DO control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
介绍
The FR-2053TA/FR-2053HTA has 16-channel isolated Sink/Source input, while the FR-2057TA/FR-2057HTA has 16-channel isolated source output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TA; refer to literature related to I-7188EF, I-8172W, FRB-100200U.
应用
相似产品

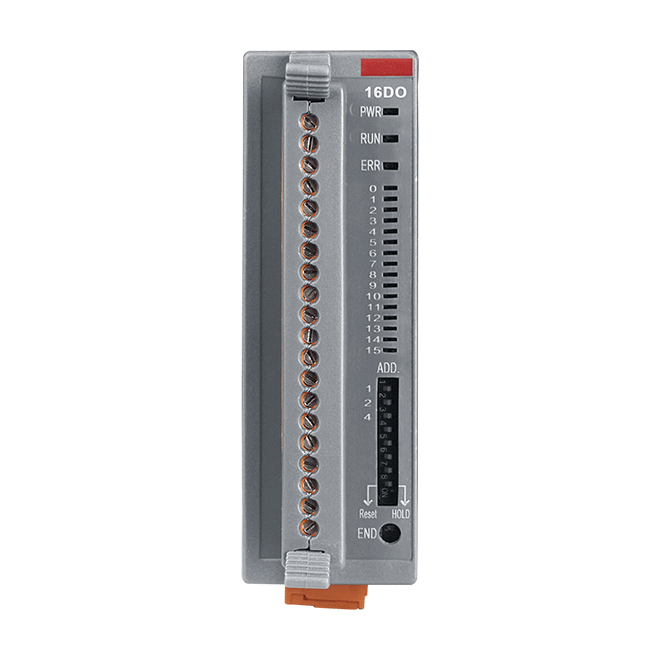

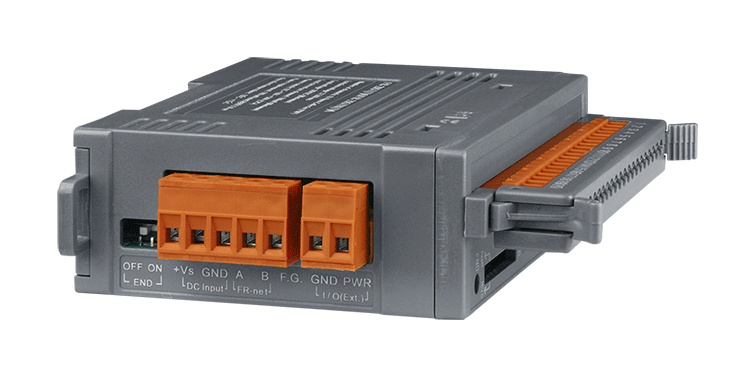

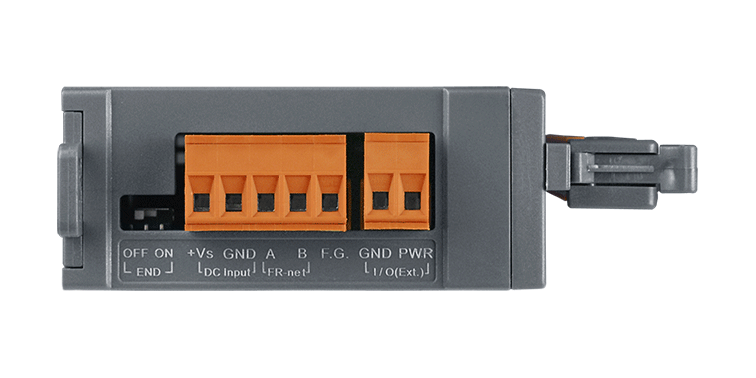

| 隔离 | |
|---|---|
| 內部隔离 | 3750 Vrms |
| EMS 防护 | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED 灯 | |
|---|---|
| 状态 | Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| 数字量输出 | |
|---|---|
| 通道数 | 16 |
| 类型 | Open Collector |
| Sink/Source (NPN/PNP) | Source (PNP) |
| 负载电压 | 30 VDC Max. |
| 负载电流 | 100 mA Max. |
| 隔离 | 3750 Vrms |
| FRnet | |
|---|---|
| 接线 | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| 传送速度 | 250 kbps for FR-2057TA 1 Mbps for FR-2057HTA |
| 传送距离 | Max. 400 m for FR-2057TA Max. 100 m for FR-2057HTA |
| 周期时间 | 2.88 ms for FR-2057TA 0.72 ms for FR-2057HTA |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +10 ~ +30 VDC (Non-isolation) |
| 功耗 | 2.4 W Max. |
| 机构 | |
|---|---|
| 外壳 | Plastic |
| 尺寸 (mm) | 33 x 102 x 110 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -30 ~ +85 °C |
| 湿度 | 10 ~ 90% RH, Non-condensing |
