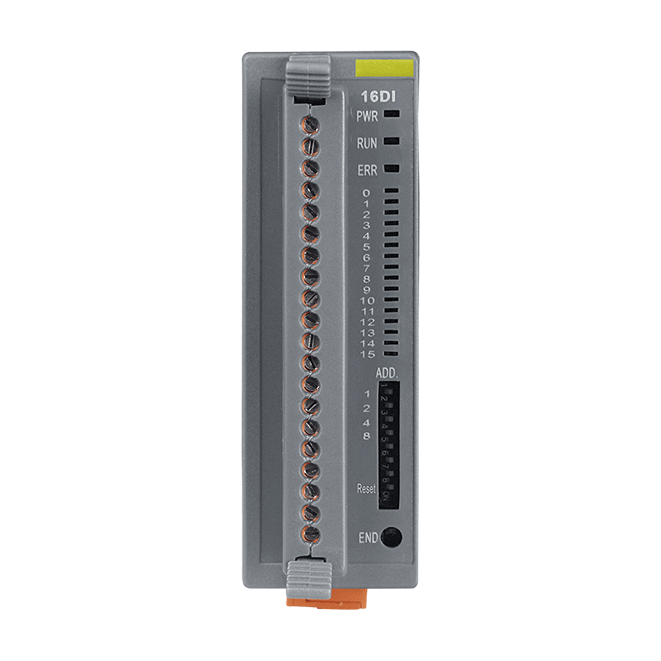

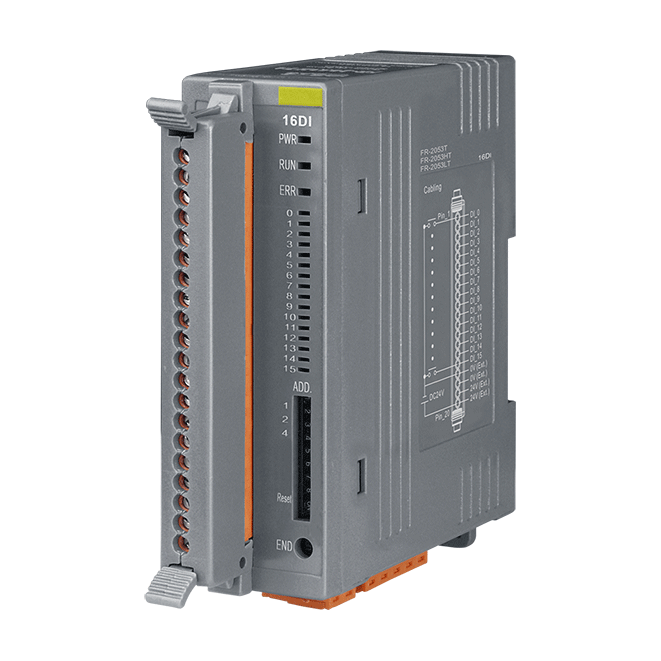

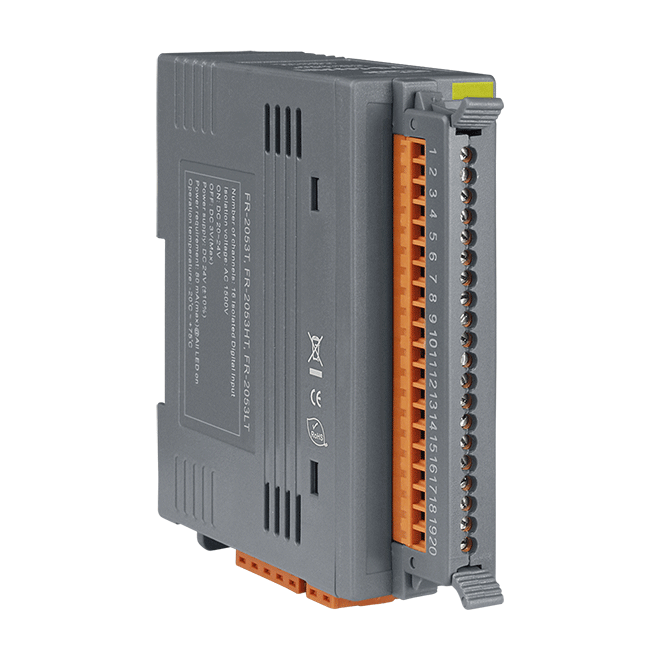

High-speed FRnet I/O Module with 16-channel Isolated DI (20~24VDC)
特色
• Built-in Wire-saving FRnet DI/DO control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable
介绍
The FR-2053T/2053HT has 16-channel isolated photo coupler input, while the FR-2057 has 16-channel isolated photo-coupler output. The default signal connector of FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2057; refer to literature related to I-8172W, FRB-100/200U.
应用
相似产品
| EMS 防护 | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED 灯 | |
|---|---|
| 状态 | Power, Communication Run, Communication Error, Terminal Resistor, Digital Input |
| 数字量输入 | |
|---|---|
| 通道数 | 16 |
| 类型 | Wet Contact |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| ON 电压准位 | +20 ~ 24 VDC |
| OFF 电压准位 | +3 VDC Max. |
| 隔离 | 1500 Vrms |
| 输入阻抗 | 4.7 KΩ |
| FRnet | |
|---|---|
| 接线 | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| 传送速度 | 250 kbps for FR-2053T 1 Mbps for FR-2053HT |
| 传送距离 | Max. 100 m |
| 周期时间 | 0.72 ms |
| 电源 | |
|---|---|
| 反极性保护 | Yes |
| 输入范围 | +10 VDC ~ +24 VDC (Non-isolated) |
| 功耗 | 2 W Max. |
| 机构 | |
|---|---|
| 外壳 | Plastic |
| 尺寸 (mm) | 33 x 102 x 107 (W x L x H) |
| 安裝 | DIN-Rail Mounting |
| 环境 | |
|---|---|
| 工作温度 | -25 ~ +75 °C |
| 储存温度 | -30 ~ +85 °C |
| 湿度 | 10 ~ 90% RH, Non-condensing |
